```ARMOR OPTIC

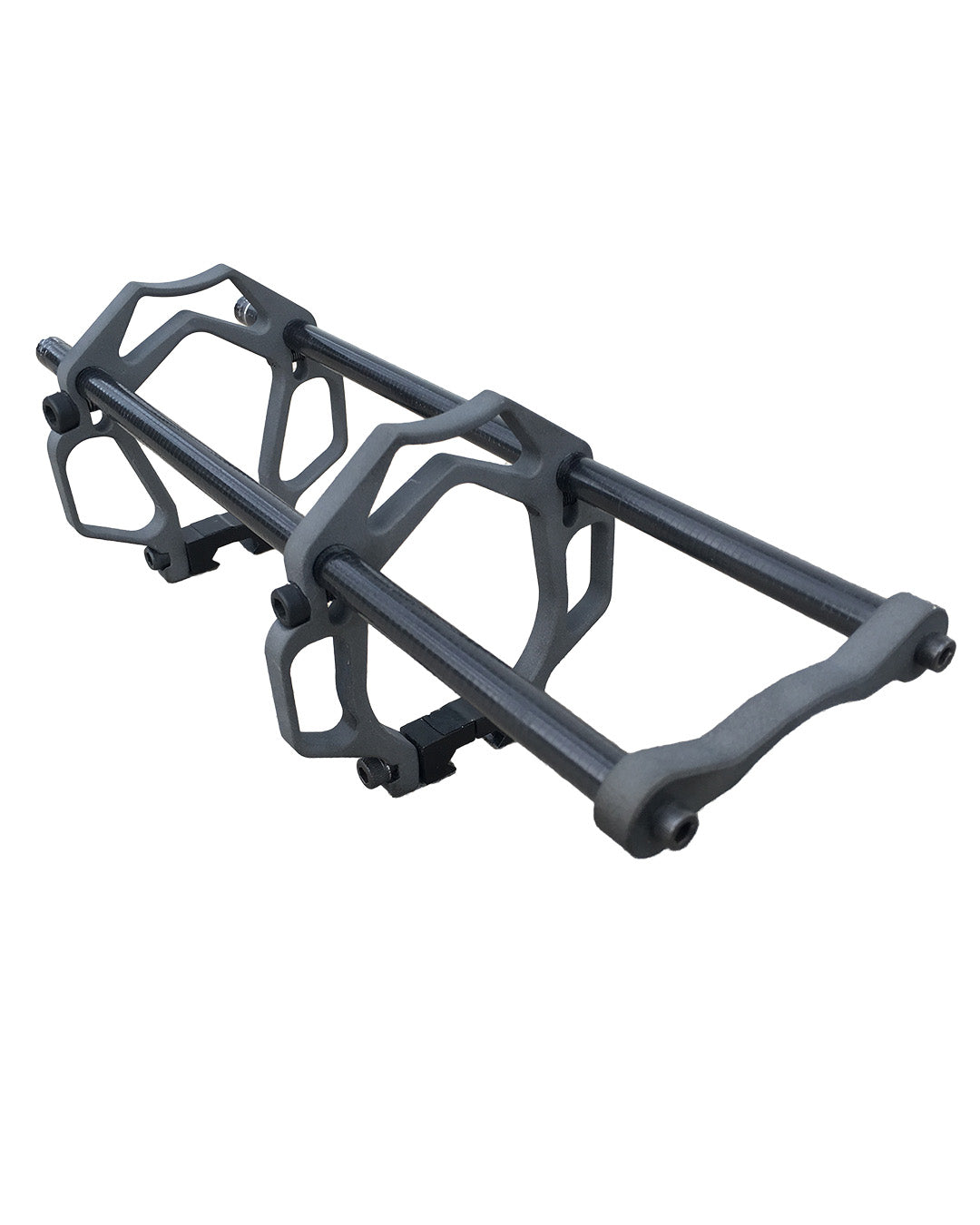

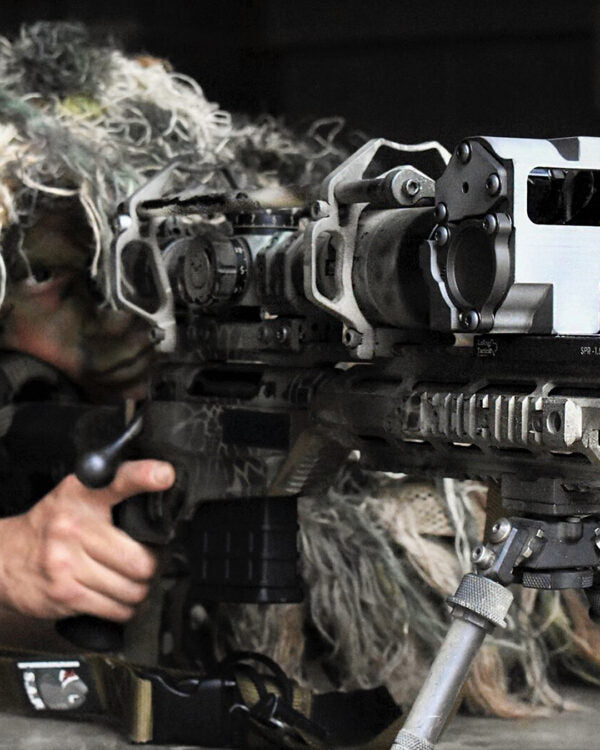

A lightweight protective roll-cage engineered to safeguard precision optics and help protect your point of impact in demanding operational environments.
```PROTECT THE OPTIC. PROTECT THE ZERO.
```Precision optics represent a significant investment and are critical components of a complete rifle system. The TACOM HQ® Armor Optic provides a structural protective cage around the optic, helping isolate it from external forces, impacts and operational abuse.

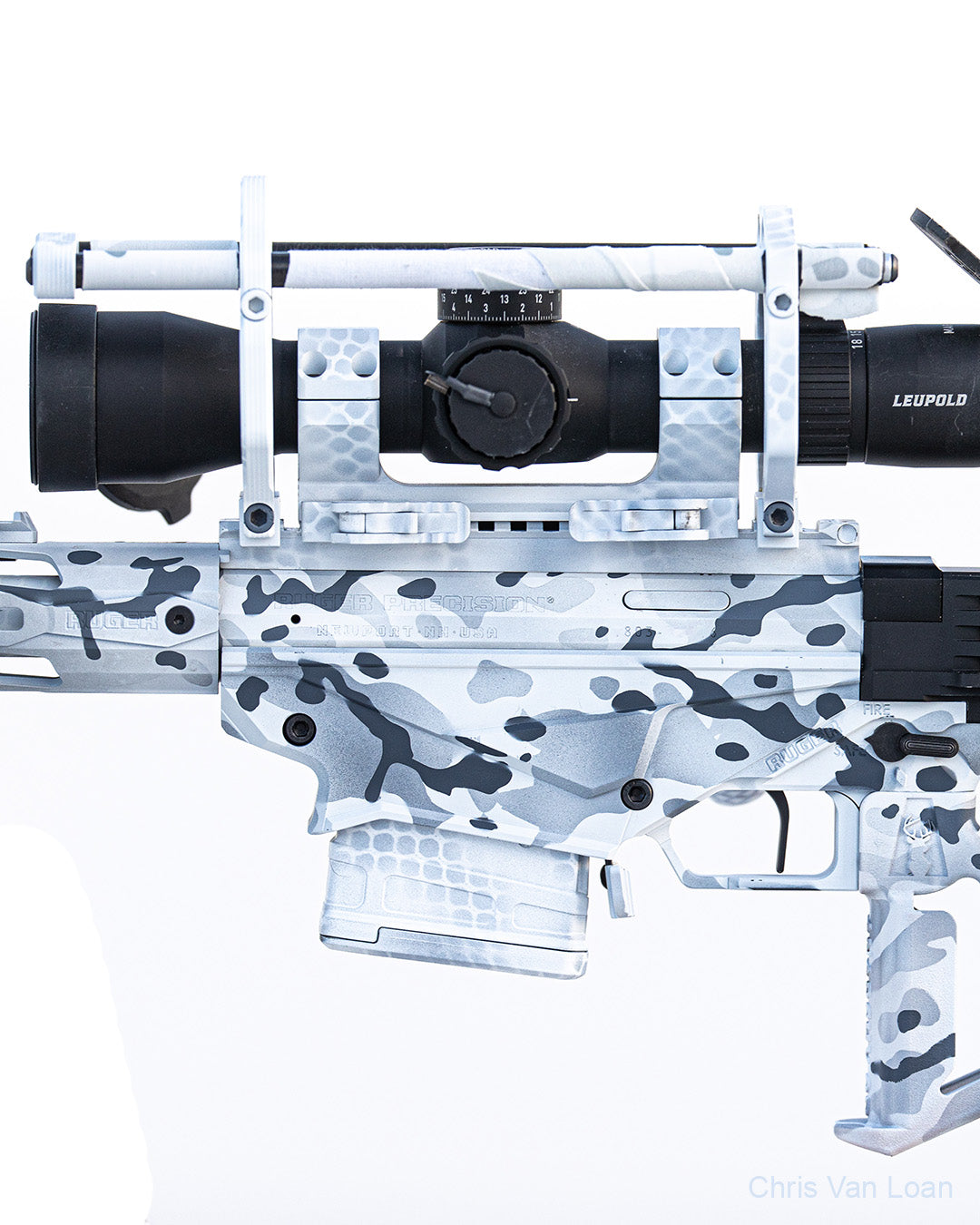

The system surrounds the existing optic configuration without requiring the scope to be removed, helping avoid unnecessary disassembly and re-zeroing.
Designed for professional, military and precision-shooting applications, Armor Optic can accommodate most scopes, thermal optics and night-vision systems.
```KEY FEATURES
```- Protective roll-cage design helps isolate optics from external forces.
- Designed to protect the optic without requiring removal and re-zeroing.
- Universal compatibility with most riflescopes, thermal optics and night-vision systems.
- Available in Micro and Macro configurations.
- Choice of 6061 aluminum or Type II high-impact PVC braces.
- Choice of lightweight carbon-fiber or reinforced carbon-fiber rods.
- Can function as a carry handle.
- Provides attachment points for camouflage and security lanyards.
- Made in the USA.
AVAILABLE CONFIGURATIONS
```MICRO
Designed for optic configurations measuring up to approximately 3.76 in / 96 mm from the top of the rail to the top of the elevation turret.
MACRO
Designed for larger optic configurations measuring up to approximately 4.11 in / 104 mm from the top of the rail to the top of the elevation turret.
BRACE MATERIAL
6061 Aluminum: Lightweight, compact and chemically resistant.
Type II High-Impact PVC: Designed for superior impact resistance.
ROD MATERIAL
Carbon Fiber: Optimized for minimum weight.
Reinforced Carbon Fiber: Fiberglass-core construction for increased impact resistance.
TECHNICAL SPECIFICATIONS
```| Micro Dimensions | 0.38 × 4.00 × 3.76 in / 10 × 112 × 96 mm |
| Macro Dimensions | 0.38 × 4.00 × 4.11 in / 10 × 112 × 104 mm |
| Weight | Approx. 6–12 oz / 170–340 g depending on configuration |
| Mount | Bolt-On • MIL-STD-1913 Rail |
| Operating Temperature | -40°F to 140°F / -40°C to 60°C |
| Salt Water Resistance | 32 ft / 10 m |
| Country of Origin | USA |
| Warranty | 5 Years • Non-transferable |
Complete System
```INCLUDED IN THE BOX
- Armor Optic braces
- Carbon-fiber or reinforced carbon-fiber rods
- Crossbars
- Fasteners
- ARP thread lubricant
Configuration Required
```REQUEST A QUOTE
Armor Optic is available in multiple configurations. Contact Fair D Canada and our team will help determine the appropriate model, materials and rod length for your optic setup.
Please include your optic model, rifle/platform, and if possible, a photo of your current setup.
REQUEST A QUOTE EMAIL FOR CONFIGURATION ```HOW TO SELECT YOUR CONFIGURATION
```1. Select Micro or Macro: Measure from the top of the MIL-STD-1913 rail to the top of your optic's elevation turret.
2. Select brace material: Choose 6061 aluminum for a compact, lightweight configuration or Type II high-impact PVC where increased impact resistance is preferred.
3. Select rod material: Choose standard carbon fiber for minimum weight or reinforced carbon fiber for increased impact resistance.
4. Determine rod length: Measure the overall length of the scope and subtract approximately 4 in / 100 mm.
```GOVERNMENT & AGENCY PROCUREMENT
```Fair D Canada supports Canadian military, law-enforcement, government and professional customers with specialized precision-shooting equipment, quotations and volume procurement.
Contact us for unit requirements, multiple rifle configurations, volume quotations and procurement assistance.
International supply is subject to applicable U.S. export regulations and manufacturer authorization.
```
