SPARE BARREL BAG
SPARE BARREL BAG
OD GREEN
Fair D Canada
1651 Chemin de l'Industrie
Beloeil QC J3G 6S8
Canada
High-Temperature
Spare Barrel Bag

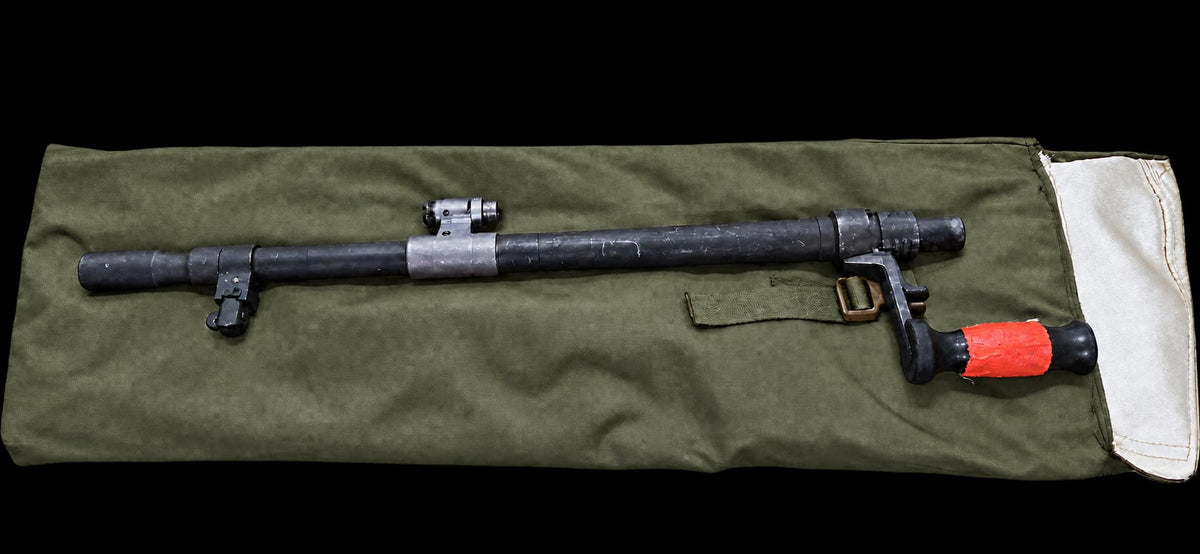

A Canadian-made thermal containment solution engineered for the temporary handling and transport of hot, removable weapon barrels. Its multilayer construction combines high-purity woven silica barriers with a 1/4-inch fiberglass insulation core.
Engineered for extreme residual heat
Designed for situations where a hot barrel must be removed from service and contained before it has fully cooled. The system is intended to slow heat transfer, protect surrounding equipment and provide an organized method of temporarily managing a high-temperature component.
Thermal barrier

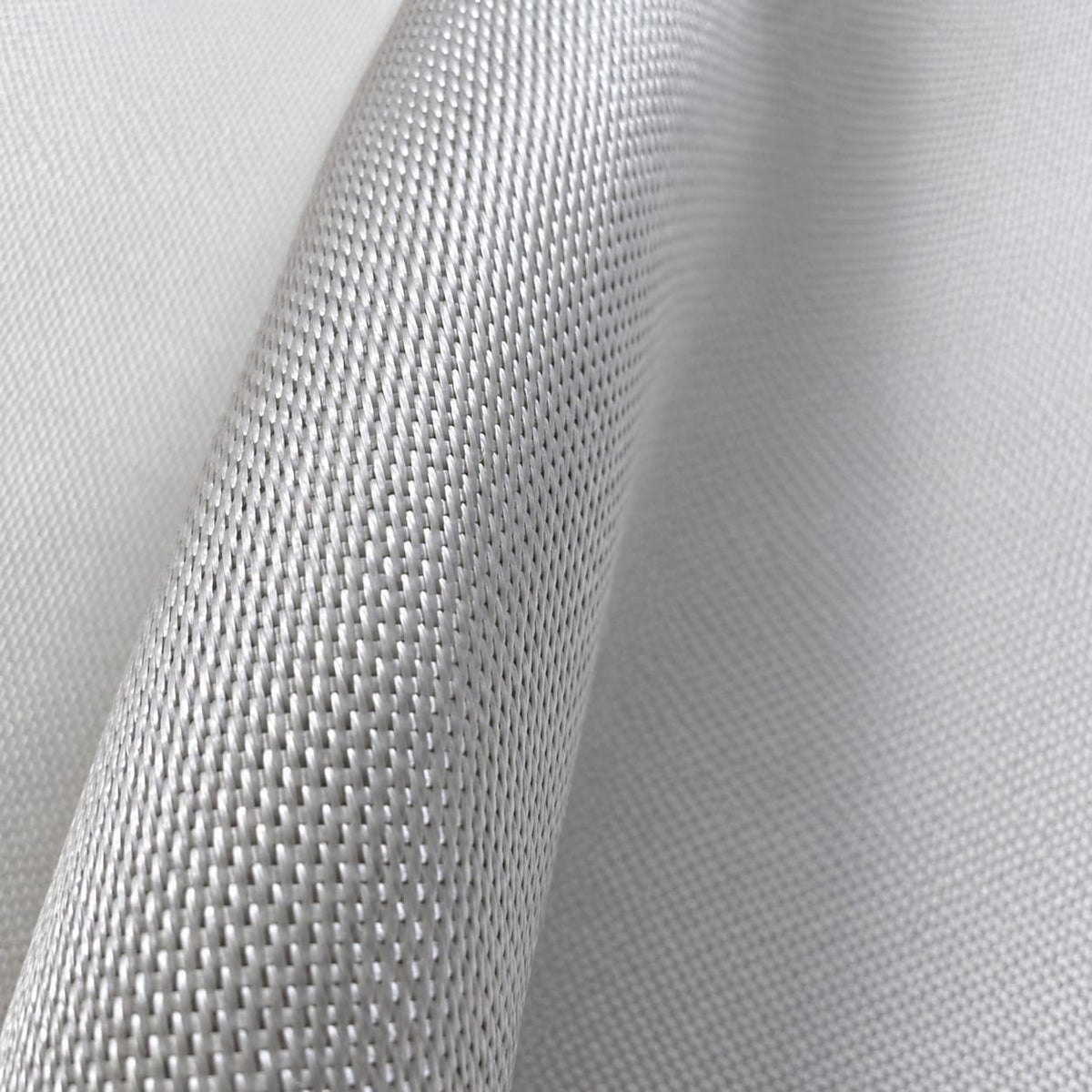

Woven 18 oz silica fabric is used on both sides of the insulating core, creating a durable high-temperature envelope.
Insulating core

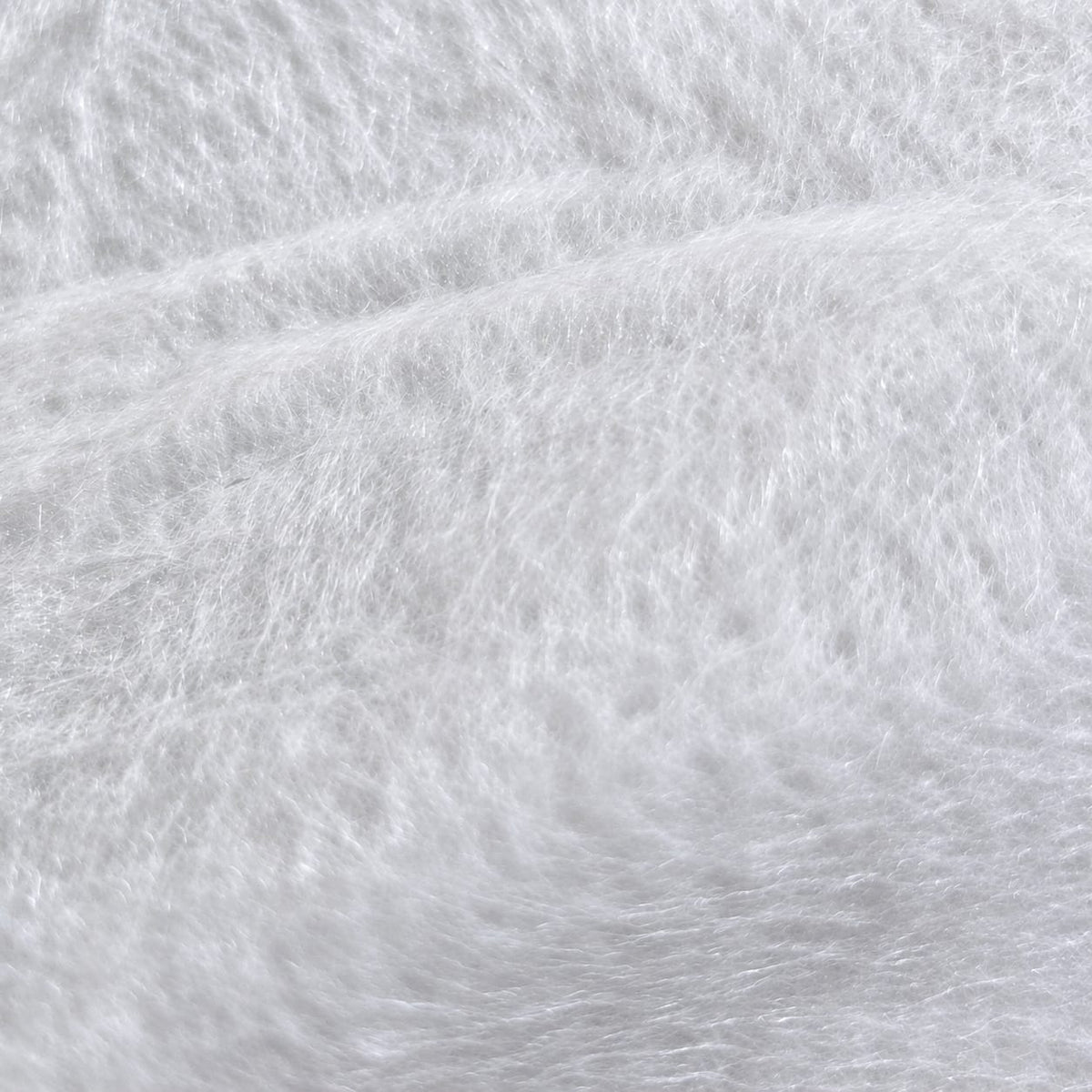

A 1/4-inch fiberglass mat delays conductive heat transfer and provides the principal insulating layer within the assembly.
Perimeter construction
The thermal assembly is secured around its perimeter using specialized high-temperature fiberglass thread.
Field-oriented design
A straightforward layered construction developed for military, institutional and professional field-evaluation programs.
Three-layer thermal assembly
Comparative temperature zones
The chart compares the intended temporary-use design zone with the documented temperature capabilities of both principal thermal materials.
Thermal reference scale
Temperature shown in degrees Celsius
The 537°C, 649°C, 982°C and 1,260°C values are documented raw-material ratings. They do not constitute a certification of the complete assembled bag. Final-system performance depends on exposure duration, contact area, barrel geometry, thermal cycling, stitching and environmental conditions.
Industrial-grade thermal materials
The principal insulation and heat-facing textiles are supported by technical data reports. Supporting documentation is available to qualified government and institutional clients upon request.
Verified material properties
- 18 oz high-purity woven silica heat-facing textile
- 1/4-inch needled Type E fiberglass insulation
- 537°C continuous rating for the fiberglass core
- 649°C intermittent rating for the fiberglass core
- 982°C continuous rating for the silica textile
- 1,260°C intermittent rating for the silica textile
- Core documentation references ASTM C1086-88
- Core documentation references MIL-I-16411 Type II and MIL-I-24244
Preliminary prototype exposure
- 9,000 BTU burner used as the heat source
- Approximately 10 cm exposure distance
- 60-second preliminary exposure duration
- Prototype passed the initial development check
- Material reports available for institutional review
- Application-specific evaluation available on request
The preliminary burner exposure is an internal product-development check and is not a laboratory certification. Material standards and temperature ratings apply to the raw materials unless expressly stated otherwise.
Built for professional evaluation
Developed as a practical thermal-management component for professional users working with removable hot-barrel weapon systems.
Intended applications
- Temporary containment of a removed hot barrel
- Military and law-enforcement field evaluations
- Range operations and weapon-system training
- Organization of hot components during cooling
- Institutional testing and procurement trials
Technical advantages
- High-purity silica heat-facing surfaces
- Insulating 1/4-inch fiberglass thermal core
- Documented military and industrial material references
- No rigid internal thermal shield
- Flexible construction for operational handling
- Technical material documentation available on request
Designed and made in Canada
Manufactured in Canada using specialized high-temperature technical materials. This product supports domestic manufacturing while providing government and institutional clients with access to material documentation, product-development support and application-specific evaluation.
Government procurement
For spare barrel bag quotations, specify the weapon and barrel model, barrel dimensions, required colour, quantity and delivery date. Fair D Canada can provide product documentation and review application-specific requirements.
Request a government quote
